Milwaukee Max-Lok Carbide Extension System

Milwaukee Max-Lok Carbide Extension System

Milwaukee Electric Tool Corporation introduces the new Max-Lok Carbide Extension System, designed to both extend and increase the versatility of SDS-MAX rotary hammer bits.

The easy to use Max-Lok system allows SDS-MAX bits to drill deeper and in tight spaces by extending them up to 82 inches. With Max-Lok extensions ranging in length from 12.5 to 82.5 inches, the Max-Lok system is designed to give users the ability to drill in hard to reach areas or drill large diameter through holes (over 1-1/4 inches) while maintaining maximum energy transfer for increased productivity.

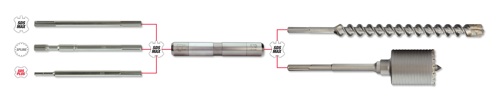

For complete versatility, the system can be driven with all rotary hammer bit retention types. Max-Lok extensions are available in SDS-MAX, SDS-PLUS, or Spline shanks that each convert to an SDS-MAX shank at the opposite end. This allows the user to connect all three shank types to the Max-Lok connection (48-20-6950) and securely lock both the extension and bit together for maximum reach.

With the launch of the new Max-Lok Carbide Extension System, Milwaukee Electric Tool continues to demonstrate its commitment to delivering innovative accessory solutions to save time and increase productivity on the jobsite.

Max-Lok Carbide Extension System

  • Max-Lok connection (48-20-6950)
  • SDS-Max 12.5” Max-Lok Extension (48-20-6960)
  • SDS-Max 29.5” Max-Lok Extension (48-20-6962)
  • SDS-Max 43” Max-Lok Extension (48-20-6964)
  • SDS-Max 63” Max-Lok Extension (48-20-6966)
  • SDS-Max 82.5” Max-Lok Extension (48-20-6968)
  • SDS-PLUS 12.5” Max-Lok Extension (48-20-6980)
  • SDS-PLUS 29.5” Max-Lok Extension (48-20-6982)
  • SPLINE 12.5” Max-Lok Extension (48-20-6970)
  • SPLINE 29.5” Max-Lok Extension (48-20-6972)
  • SPLINE 43” Max-Lok Extension (48-20-6974)
  • Grease Max-Lok (49-08-5385)

For more information on the full line of Milwaukee power tools and accessories, please call 1-800-SAWDUST or visit www.milwaukeetool.com.
